Gridfinity, sized
to your drawer.

Measure the space. Get the plate that fits. Lay out the bins.

Gridfinity is a 42 mm grid, so the only real question about any drawer is how many whole cells actually fit inside it. Type in the width, depth and height you measured, in millimetres or inches, and DrawerCraft answers that exactly — along with the tallest bin the drawer will still close on, and how much room is left over.

Then it hands you the plate. Drag bins onto it, colour-code them, label what goes in each one, or auto-fill the whole thing in a tap. Preview the finished layout in AR at full size, sitting in the actual drawer, before you commit nine hours of printing to it.

Largest baseplate that fits 9 × 7 378 mm × 294 mm · 63 cells
Max bin height10U
Leftover70 mm
Filled90%
Download on the App Store Free · iPhone & iPad

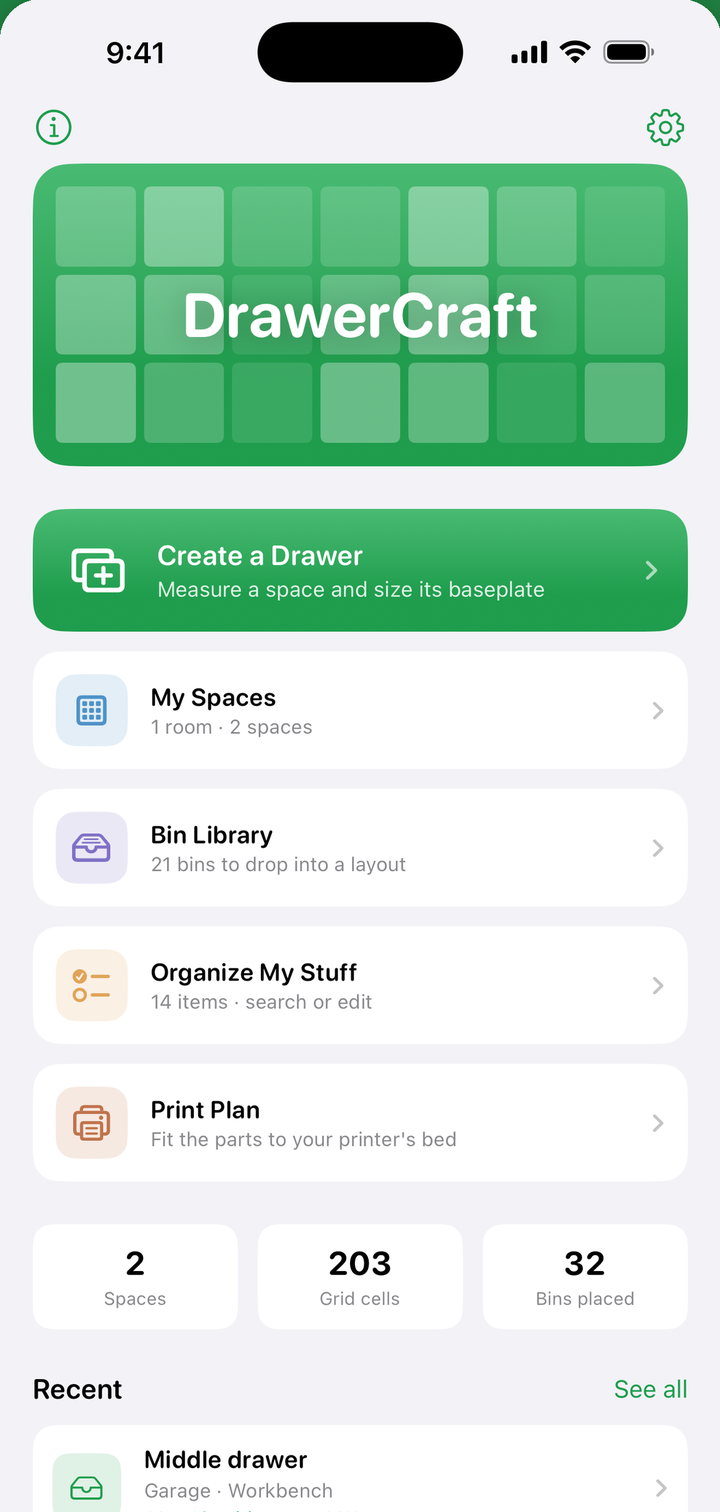

DrawerCraft home screen showing saved spaces, the bin library and a print plan
What it does

Four steps, no guesswork.

Everything the app knows comes from the published Gridfinity spec — 42 mm cells, 7 mm height units, 41.5 mm bin footprints — applied to the drawer you actually have.

Check it before you print

Type in what you measured, in millimetres or inches, then preview the finished layout in AR at full size, sitting in the real drawer.

Get the plate that fits

The largest baseplate that drops in, the tallest bin in 7 mm units, and how much room is left over. Real geometry throughout: 42 mm pitch, 0.5 mm clearance, magnet and screw positions.

Lay out the bins

Everything snaps to the grid — nothing overlaps, nothing hangs off the edge. Auto-fill covers a plate in one tap, and you can reroll it until you like what you see.

Pro Design custom bins

Paint any connected shape on the grid — an L to wrap a corner post, a U around a fixed divider — and save it to your library.

Pro Never lose it again

List what goes in each bin and photograph the drawer, then search everything you own from anywhere in the app. Drawers file under furniture, furniture under rooms.

Pro Plan the print run

Set your printer's bed from presets or your own numbers. Oversized plates divide into pieces that fit and reassemble into the original.

The detail most calculators miss: a bin's 4.75 mm interlocking base sits inside its first height unit, so a 3U bin stands 21 mm, not 25.75 mm. Add a stacking lip and it's 25.4 mm. DrawerCraft calls that out separately, because it's the difference between a drawer that closes and one that doesn't.

Screenshots

From bare drawer to print queue.

Scroll sideways to see more →

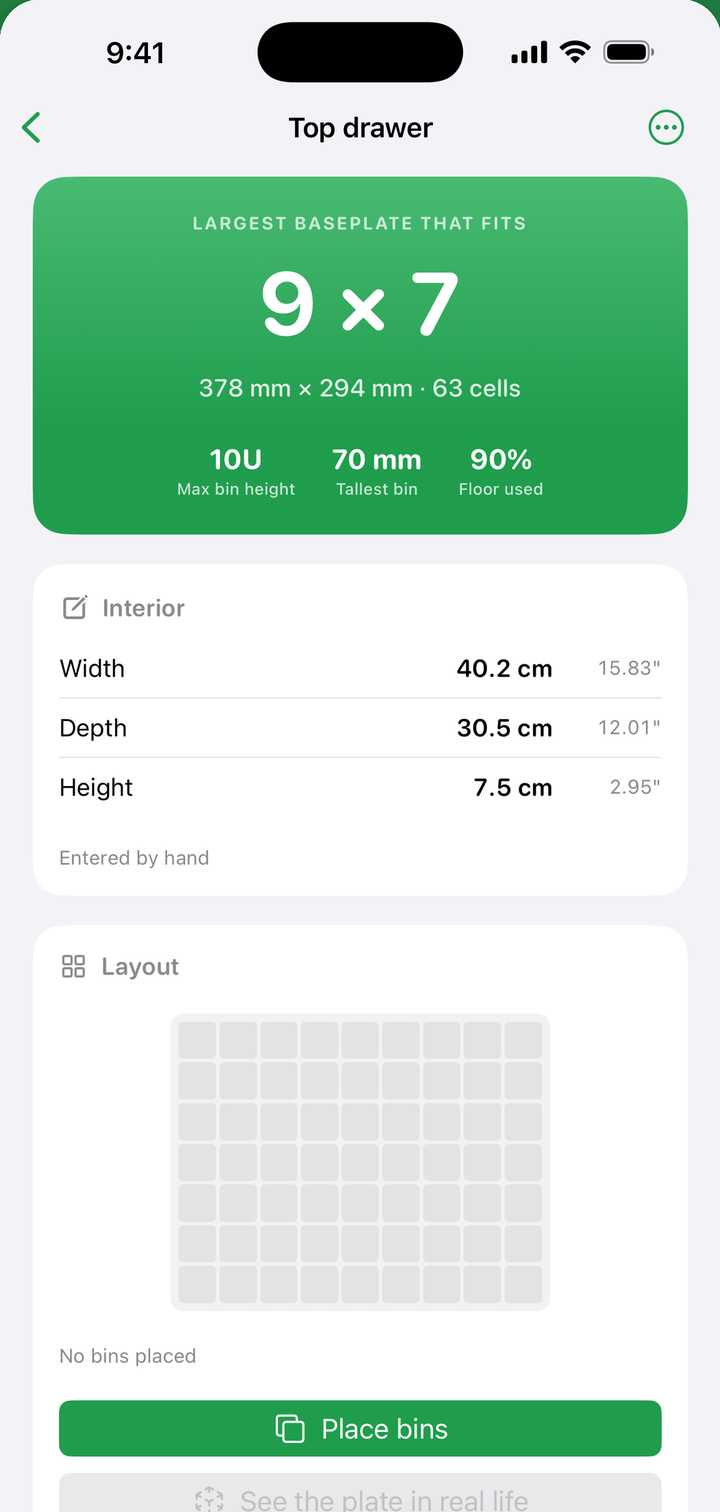

Entering drawer width, depth and height to get the largest baseplate that fits

Type three numbers, get your plate

Width, depth and height in mm or inches — columns, rows and max bin height come back instantly.

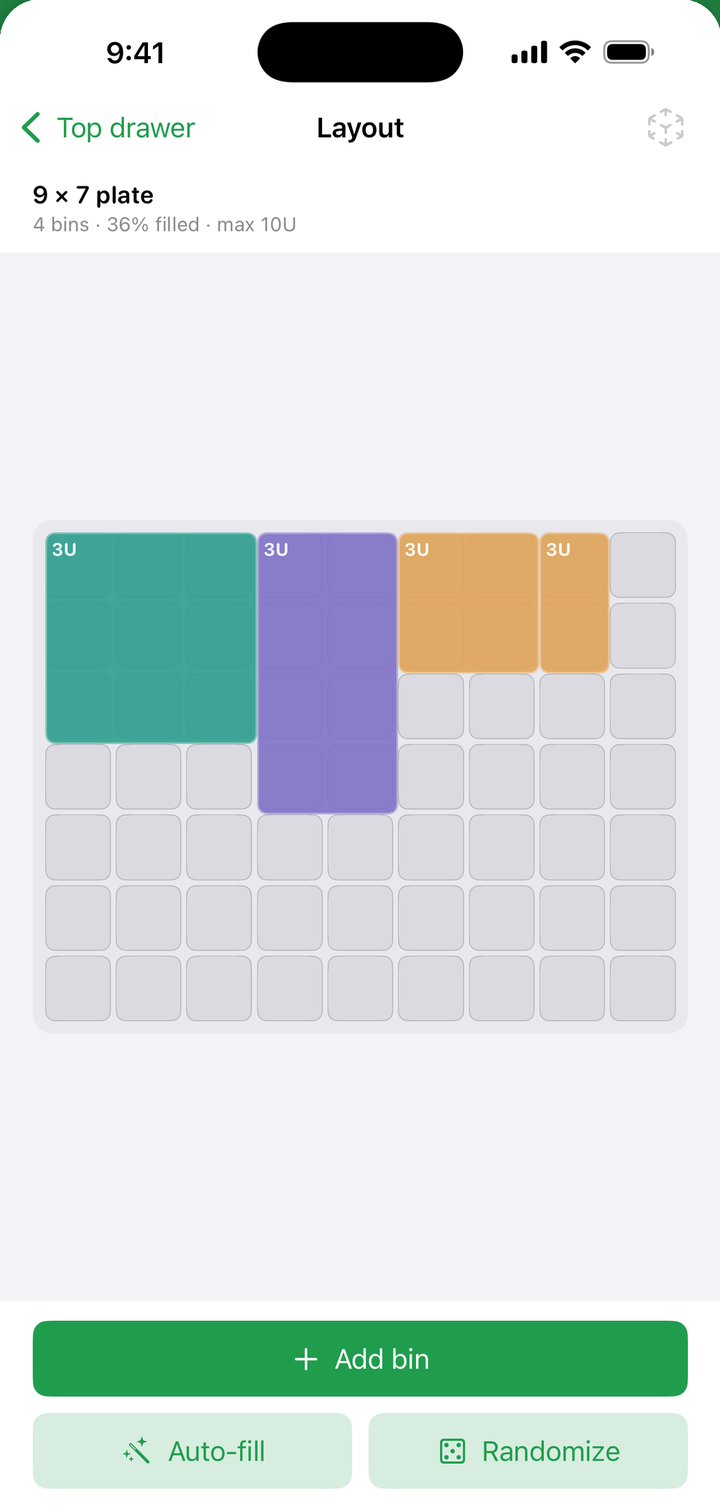

Dragging bins onto the baseplate layout

Drag the bins where you want them

Every placement is checked against the grid as you go.

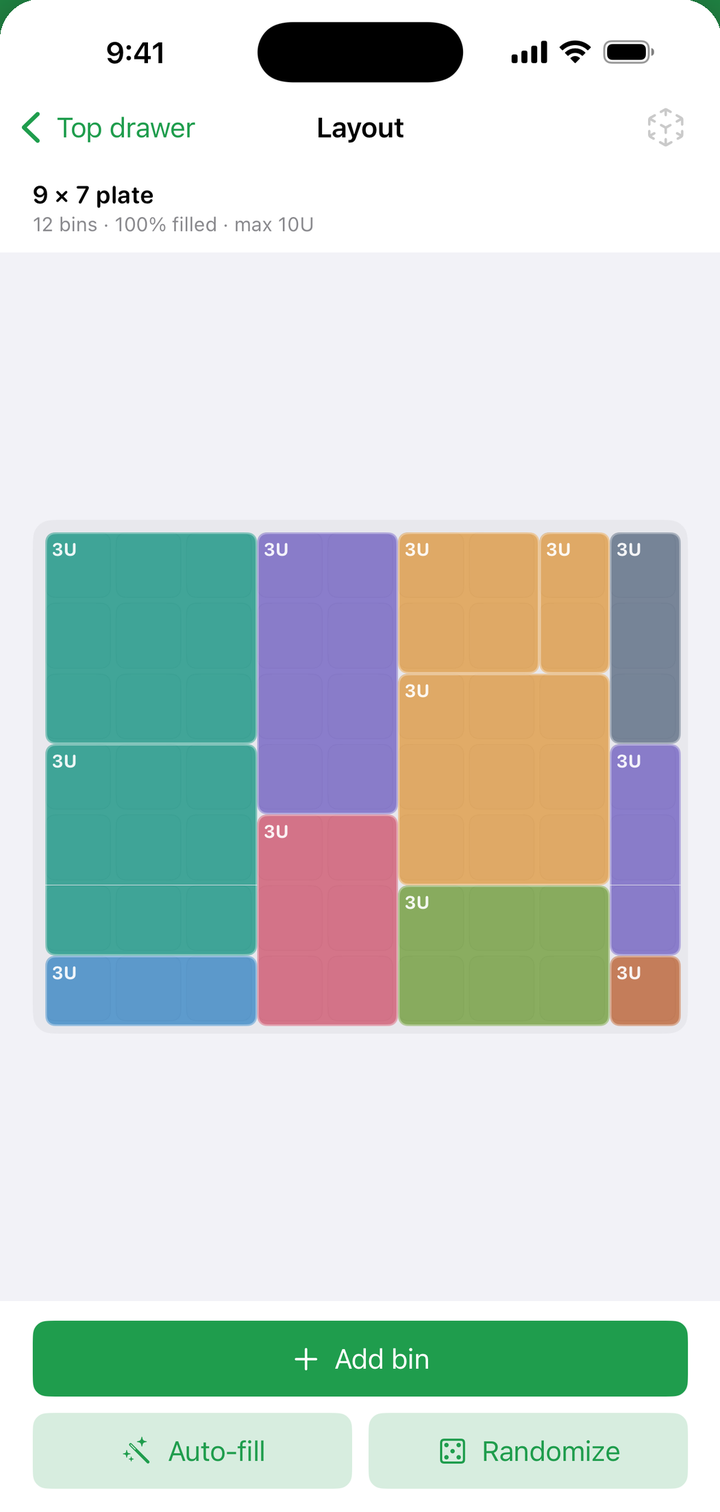

Auto-filling the whole plate with the largest bins that fit

Or fill the plate in one tap

Auto-fill, randomize, then change whatever you don't like.

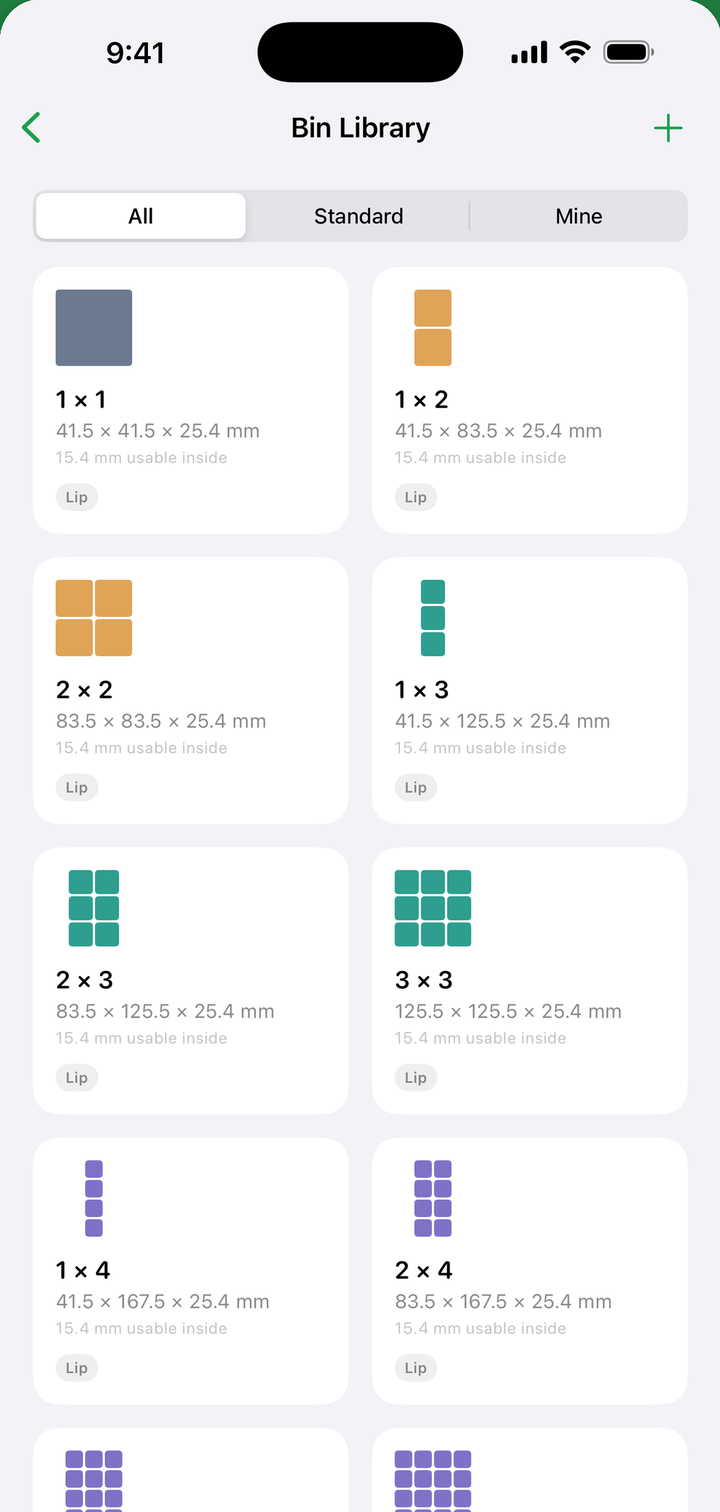

The bin library showing every standard size with usable interior depth

A library of standard bins

Every stock size, with the usable depth inside each one.

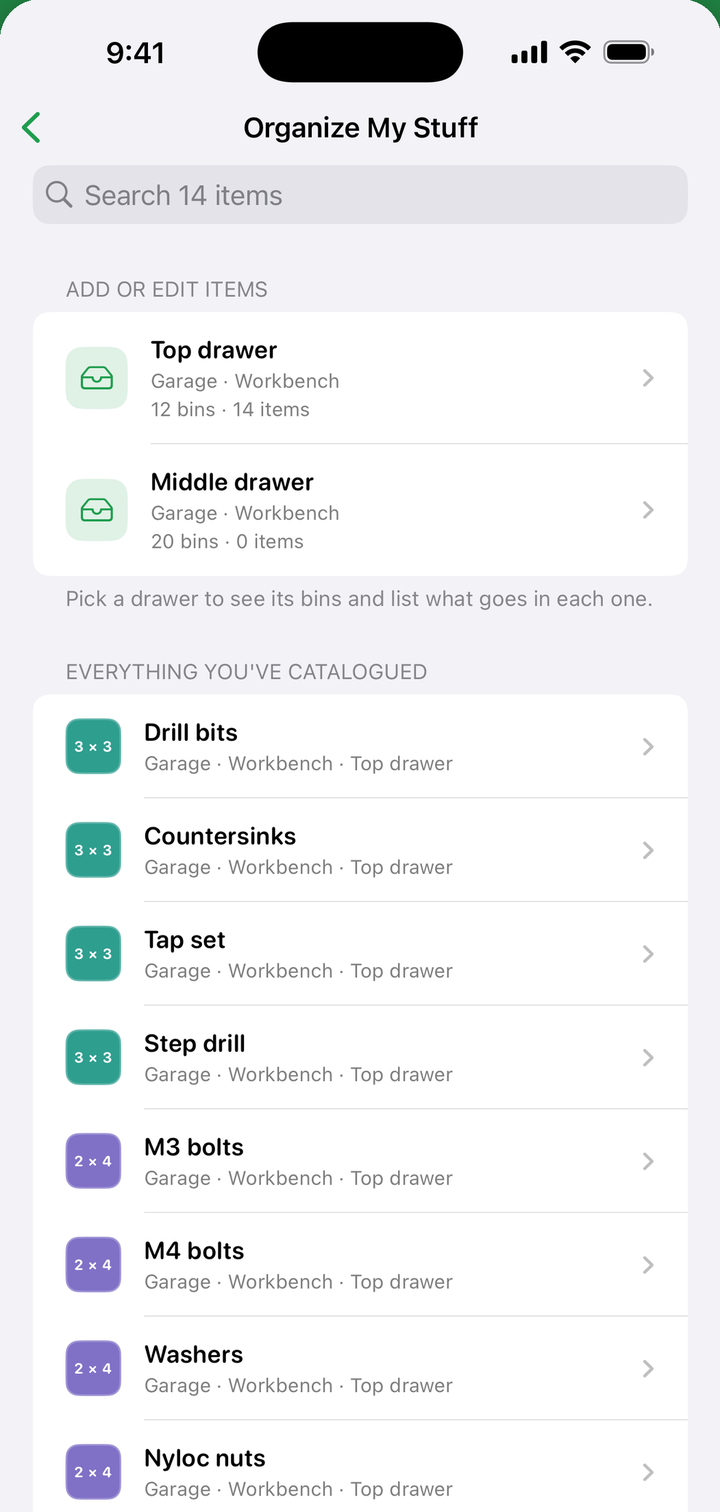

Searching a catalogue of what lives in every bin

Never lose it again

List what's in every bin, then search it from anywhere in the app.

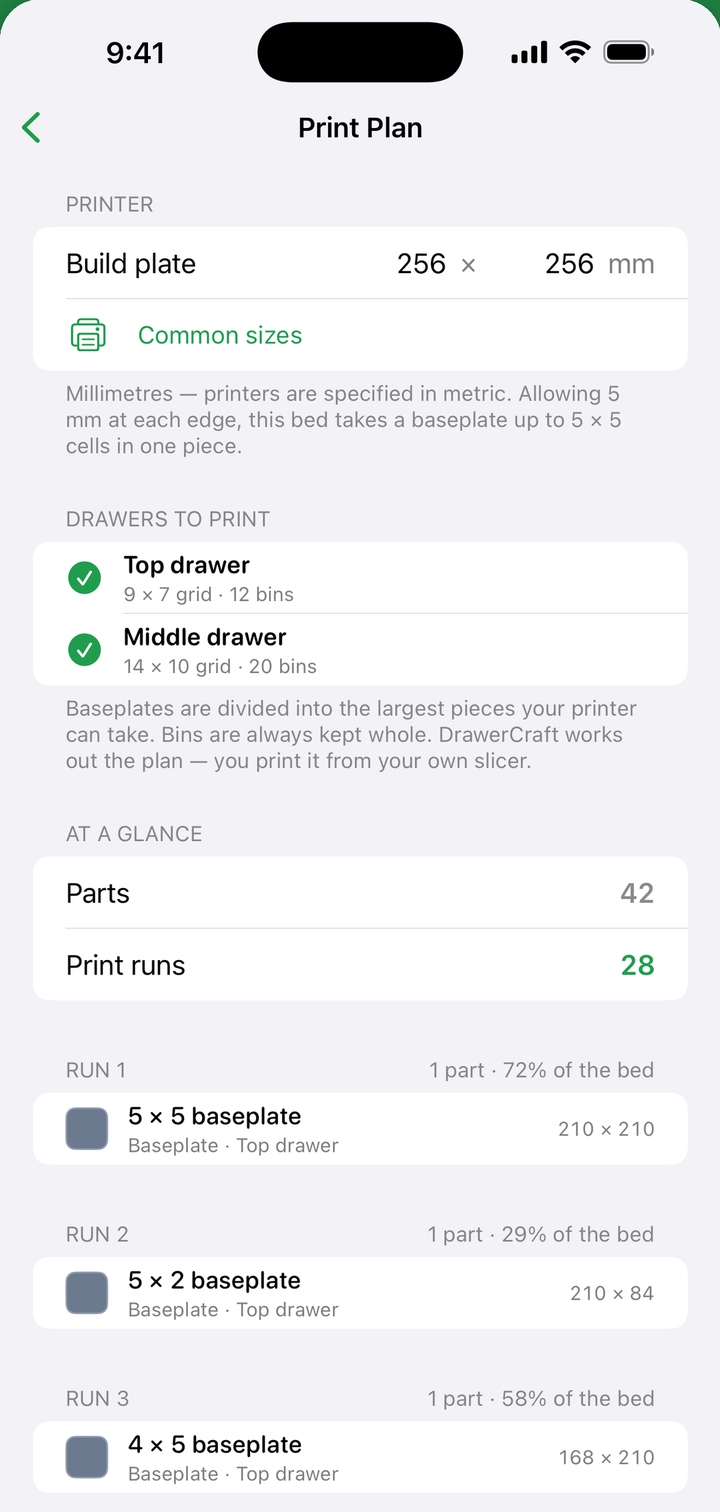

A print plan splitting baseplates across the printer bed

Plan the whole print run

How baseplates split to fit your printer's bed, and how many runs the job takes.

Stop measuring twice.

Free on the App Store — measuring, plate fitting and bin layout are all in the free version. Pro is one purchase, never a subscription, and unlocks unlimited rooms and drawers, contents search, print planning, custom shapes, every accent colour, and no ads.

Download now See other projects

DrawerCraft plans layouts — it does not generate STL files. Print your bins and baseplates from any of the free Gridfinity models already out there; the plan tells you which sizes to print and how many of each. Gridfinity is an open standard created by Zack Freedman. DrawerCraft is an independent app and is not affiliated with him or with any bin vendor.
